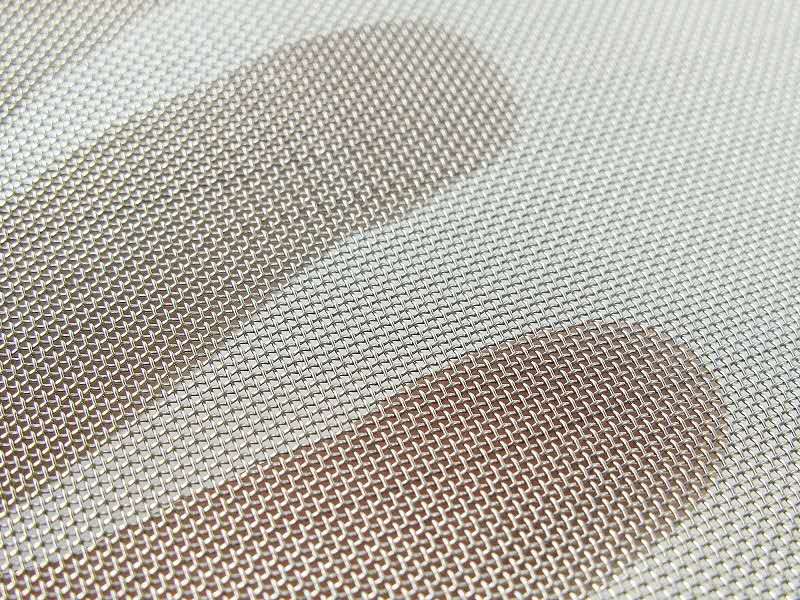

Stainless Steel Wire Cloth

Stainless Steel Wire Cloth

We are experienced in producing wire mesh products. for the past years, we have been consistently pursue the introduction of international advanced wire mesh weaving equipment and technology. Efforts to improve our product quality.

Special specifications can be customized production

Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, extensively used in processing of oil, chemical and food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.


Varieties according to materials:
According to clients’ request , Stainless steel wire mesh may produced by materials, such as 304, 304L,316,316L, Titanium mesh, Nickle Mesh, Monel wire mesh Chrome alloy iron etc. Standard roll width: 40", 48",60",72"to 6 meters Standard roll length of stainless steel wire mesh: 30m to 100'. Special sizes can be customized. weaving types include: Plain Weave, Twilled Weave etc.

Plain weave: Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.Characteristics: square aperture ,high flow through , relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration up to 63 µm.

Twill weave: Each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both(warp and weft)is mostly the same. Characteristics: square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm

Plain Weave
Twill Weave


Mesh count is meshes per inch. S.s mesh count is decided by meshes in warp direction and weft direction. Square mesh has the same mesh count in both warp and weft direction. The more mesh counts are, the smaller the opening size is. and vice versa.
You can use the following calculator to convert between mesh count, opening size and wire diameter.

mesh count:
opening size(mm):
wire diameter(mm):

Mesh

Swg

Wire Gauge

Aperture

Percentage of

Opening (%)

Micron

inch

mm

inch

mm

1×1

13

0.0920

2.337

0.9080

23.063

82.4

23063

2×2

15

0.0720

1.829

0.4280

10.871

73.3

10871

3×3

17

0.0560

1.422

0.2773

7.045

69.2

7045

4×4

16

0.0640

1.626

0.1860

4.724

55.3

4724

4×4

19

0.0400

1.016

0.2100

5.334

70.6

5334

5×5

20

0.0360

0.914

0.1640

4.166

67.3

4166

5×5

18

0.0480

1.219

0.1520

3.861

57.8

3861

6×6

21

0.0320

0.813

0.1347

3.420

65.3

3420

6×6

19

0.0400

1.016

0.1267

3.217

57.8

3217

8×8

22

0.0280

0.711

0.0970

2.464

60.2

2464

8×8

20

0.0360

0.914

0.0890

2.261

50.7

2261

10×10

25

0.0200

0.508

0.0800

2.032

64.0

2032

10×10

21

0.0320

0.813

0.0680

1.727

46.2

1727

12×12

26

0.0180

0.457

0.0653

1.660

61.5

1660

12×12

22

0.0280

0.711

0.0553

1.406

44.1

1406

14×14

27

0.0164

0.417

0.0550

1.397

59.3

1397

14×14

23

0.0240

0.61

0.0474

1.204

44.1

1204

16×16

27

0.0164

0.417

0.0461

1.171

54.4

1171

16×16

23

0.0240

0.61

0.0385

0.978

37.9

978

18×18

29

0.0136

0.345

0.0420

1.066

57.1

1066

18×18

24

0.0220

0.559

0.0335

0.852

36.5

852

20×20

30

0.0124

0.315

0.0376

0.955

56.5

955

20×20

24

0.0220

0.559

0.0280

0.711

31.3

711

24×24

29

0.0136

0.345

0.0281

0.713

45.4

711

30×30

33

0.0084

0.213

0.0249

0.634

56.0

559

30×30

29

0.0136

0.345

0.0198

0.502

35.1

483

40×40

37

0.0068

0.173

0.0182

0.462

52.9

432

40×40

32

0.0108

0.274

0.0142

0.361

32.3

356

50×50

38

0.0060

0.152

0.0140

0.356

49.1

368

50×50

34

0.0092

0.234

0.0108

0.274

29.1

279

60×60

38

0.0060

0.152

0.0107

0.271

41.1

272

60×60

35

0.0084

0.213

0.0083

0.210

24.7

203

80×80

40

0.0048

0.122

0.0077

0.196

37.9

191

80×80

37

0.0068

0.173

0.0057

0.145

20.7

140

100×100

42

0.0040

0.102

0.0060

0.152

35.8

152

100×100

41

0.0044

0.112

0.0056

0.142

31.3

140

120×120

44

0.0032

0.081

0.0051

0.131

38.1

117

120×120

43

0.0036

0.091

0.0048

0.121

32.5

117

150×150

45.5

0.0025

0.064

0.0041

0.105

38.7

104

160×160

45.5

0.0025

0.064

0.0037

0.095

35.6

98

180×180

46

0.0024

0.061

0.0032

0.080

32.2

84

200×200

46.5

0.0023

0.058

0.0027

0.069

29.5

69

200×200

47

0.0020

0.051

0.0030

0.076

35.8

74

250×250

48

0.0016

0.041

0.0024

0.061

35.6

61

300×300

48

0.0016

0.041

0.0017

0.044

26.6

46

325×325

48.5

0.0014

0.036

0.0017

0.042

29.1

43

400×400

49

0.0012

0.031

0.0013

0.033

26.2

38

500×500

50

0.0010

0.025

0.0010

0.026

25.8

25

635×635


0.0008

0.020

0.0008

0.020

25
