Reverse Dutch Wire Cloth

Products

Stainless Steel Mesh

Reverse Dutch Wire Cloth

< >

Reverse Dutch Weave Wire Cloth

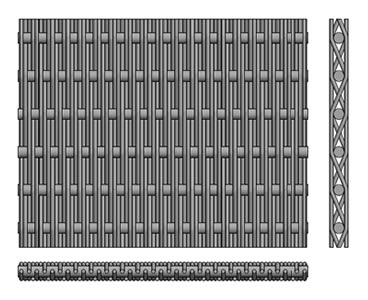

This is the reverse of the Plain Hollander (Dutch) weave. The weft wires are of greater diameter than the warp wires, and consequently the warp mesh count is greater than the weft mesh count. This cloth is extremely strong, is easily cleaned and has a high flow rate.

Send Email

Reverse Dutch Weave Wire Cloth is a very strong woven product.This mesh is ideal for making filter belts, and applications where fine filtration and great strength are required.
Materials: stainless steel wire-SUS304,SUS304L,SUS316,SUS316L.
Features: Fine filtration, highly durable.
Applications: Widely used in aerospace, petroleum, chemical industry, chemical fiber, machinery, plastic products, scientic research, conveying and other industries.
Specifications: Refer to the table below. Special sizes can be custom made. The apparent difference of Reverse Dutch Weaving compared with standard Dutch weave lies in the thicker warp wires and less weft wires. Reverse Dutch woven stainless steel wire cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields. Through constant technological innovation and improvement, we can produce stainless steel wire mesh of various specification in reverse Dutch weaving patterns. Applications of Reverse Woven Wire Cloth: Filter candles, vacuum filters and spring filters.

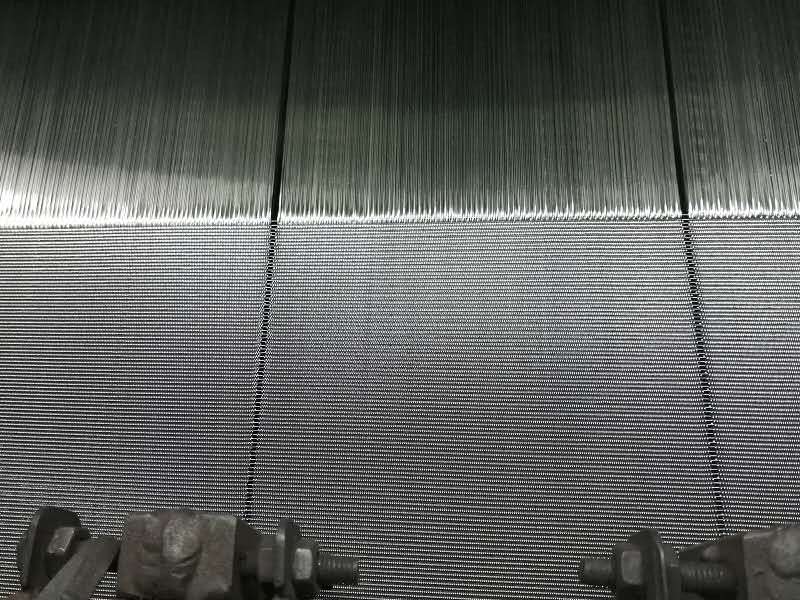

Weaving: Reverse Dutch weaving.

mesh count:
opening size(mm):
wire diameter(mm):

Specifications Reverse Plain Dutch and Reverse Dutch Twill Weave Filter Cloth

Mesh Count	Wire Dia. WARP	Wire Dia. WEFT	Weave Type	Nominal Micron Retention	Porosity	Weight LBS/SF	Absolute Micron Retention
Mesh Count	Wire Dia. WARP	Wire Dia. WEFT	Weave Type	Nominal Micron Retention	Porosity	Weight LBS/SF	Absolute Micron Retention
66 x 18	0.30	0.40	RPDW	200	66%	0.45	210 - 230
84 x 25	0.32	0.40	RPDW	150	49%	0.63	150 - 180
130 x 30	0.20	0.45	RPDW	100	53%	0.58	100 - 108
130 x 35	0.20	0.40	RPDW	80	56%	0.55	83 - 90
175 x 40	0.15	0.35	RPDW	108	58%	0.46	100 - 112
175 x 50	0.15	0.30	RPDW	60	53%	0.44	62 - 68
175 x 45	0.15	0.32	RPDW	100	56%	0.44	90 - 102
290 x 60	0.09	0.23	RPDW	50	50%	0.28	43 - 51
290 x 74	0.09	0.20	RPDW	40	52%	0.26	38 - 45
625 x 104	0.04	0.15	RPDW	30	55%	0.18	25 - 32
625 x 106	0.04	0.14	RPDW	25	56%	0.17	23 - 28

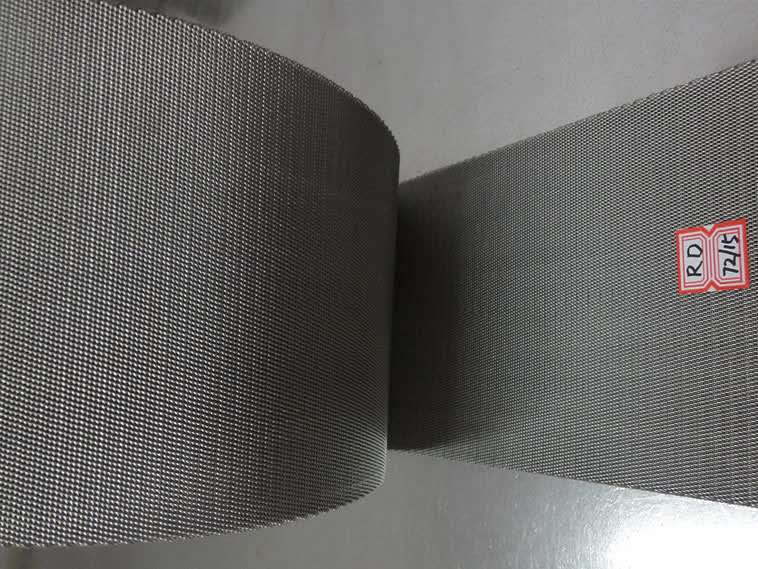

72 x 15	0.45	0.55	RDTW	400	58%	0.91	400 - 450
132 x 16	0.36	0.56	RDTW	350	45%	1.11	300 - 350
132 x 16	0.35	0.46	RDTW	250	58%	1	210-260
132 x 18	0.36	0.45	RDTW	200	57%	0.95	180-220
152 x 24	0.31	0.36	RDTW	165	42%	0.93	115-130
160 x 24	0.30	0.40	RDTW	150	42%	0.96	95-135
160 x 25	0.31	0.40	RDTW	145	39%	1.02	90-125
228 x 36	0.19	0.28	RDTW	100	47%	0.56	95-130
60 x 40	0.15	0.22	RDTW	125	53%	0.41	80-95
325 x 39	0.15	0.30	RDTW	55	43%	0.56	45-75
400 x 120	0.07	0.10	RDTW	60	61%	0.15	60-70
