Polymer Filter Elements for Diverse Material Filtration and Production

JD Hardware Wire Mesh Co., Ltd offers Polymer Filter Elements, blending functionality and efficiency in filtration technology. These elements feature a unique pleated design for support and filtration, enduring high pressure and expanding the filtration area by 1.4 times compared to traditional candle filters, leading to reduced filter time and enhanced efficacy.

Ideal for polymer filtration in fibers, films, and resins, these elements are widely used in the chemical fiber, textile, and plastic industries. JD Hardware Wire Mesh Co., Ltd has developed a versatile range to meet diverse needs in filtration, separation, and purification.

Committed to delivering quality solutions that boost productivity and efficiency, our Polymer Filter Elements embody durability, performance, and adaptability for modern industrial demands.

Main Types

For polymer melt filtration, customers typically choose from two main types of pleated metal filter elements:

• Woven Mesh Type: This type features both outer protective layers and inner filter layers made entirely of woven mesh, ensuring consistent filtration quality.
• Mixed Media Type: This variant combines an outer layer of woven mesh with a middle filter layer of stainless steel fiber felt, which improves filtration efficiency and durability.

Polymer Filter Elements: Comparing two types of filter layers:

• Woven Mesh Filter Layer:
  Filter Media: Utilizes structured, interlaced wire mesh for hard particulates.
  Filter Micron: Provides precise ratings from 5 to 400 microns, usually lower due to a tight weave.
  Dirt Holding Capacity: Generally lower than fiber filters, constrained by mesh openness.
  Permeability: High, owing to consistent and uniform mesh openings.
  Work Differential Pressure: Capable of withstanding high differential pressures.
  Work Temperature: Suitable for a broad temperature range, metal-dependent.
  Repeat Cleaning: Highly durable, suitable for repeated cleaning and reuse.
  Corrosion Resistance: Varies with material; stainless steel, for instance, offers excellent resistance.
• Filter Fiber Filter Layer:
  Filter Media: Made of tangled and interlocked fibers for trapping hard particles and deformable gels.
  Filter Micron: Offers variable ratings, generally 1-100 microns, higher due to fiber arrangement.
  Dirt Holding Capacity: Higher as fibers can trap and retain more particles.
  Permeability: Lower than woven mesh, influenced by fiber density.
  Work Differential Pressure: Typically lower than that of woven mesh.
  Work Temperature: Dependent on fiber material, possibly lower than metal mesh.
  Repeat Cleaning: Less suited for repeated cleaning in comparison to mesh.
  Corrosion Resistance: Varies according to fiber material, might be less than metal.

Features

• Enhanced Area: The pleated design increases the filter area.
• Improved Capacity: Boosts dirt holding capacity.
• Pressure and Cost Benefits: Lowers differential pressure, saving on filter costs.
• Diverse Materials: Suitable for various environments, including stainless steel, Hastelloy, Inconel, Nickel, etc.
• Mechanical Strength: Excellent strength ensures durability.
• Corrosion Resistance: High resistance to corrosion.
• High-Temperature Tolerance: Can withstand extreme temperatures.
• Cost-Effectiveness: Longevity contributes to cost savings.
• Cleaning Methods: Includes superheated steam, chemical, and ultrasonic cleaning.

Applications

• Chemical Processing: Ideal for filtering in the production of polymers, plastics, and resins.
• Pharmaceutical Industry: Crucial for purification in drug manufacturing to ensure product purity and safety.
• Water Treatment: Effective in removing impurities, vital for industrial and municipal water treatment.
  Food and Beverage: Ensures safety and quality in food and beverage filtration processes.
• Petrochemical Sector: Key in refining and purifying petrochemical products.
• Automotive Manufacturing: Used in producing high-purity materials for automotive parts.
• Aerospace Industry: Essential for filtering materials in aerospace manufacturing.
• Electronics Manufacturing: Critical in producing clean, pure materials for electronic components.
• Oil and Gas Industry: Integral to filtration in production, refining, and distribution.
• Polymer Filtration Processes: These filter elements are widely used in polymer filtration, suitable for materials such as PE, LDPE, PET, PP, PA, PBT, PC, PEEK, BOPET, BOPP, PMMA, EVA, and carbon fiber. They are also essential in producing fibers, resins, films, and sheets.

Product Photo Showcase and Alias

PFE-1: Polymer filter element with different fixing method

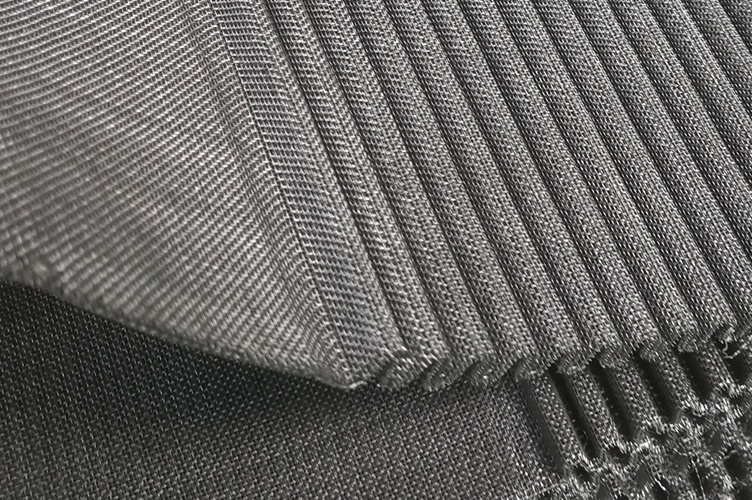

PFE-2: Stainless steel pleated filter element with woven mesh for filter layer

PFE-3: Stainless steel polymer filter element with metal fiber for precise filtration
